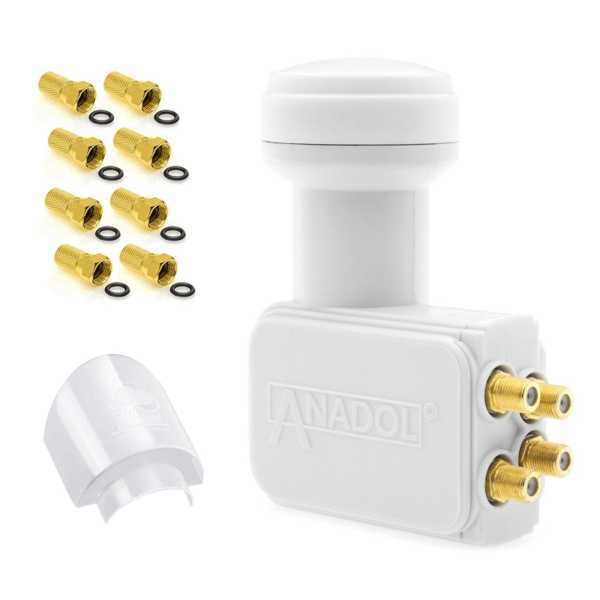

Anadol Gold Line Quad LNB 0.1 DB 4 Participants +8 Gold-Plated F-Plugs with LNB Weatherproof Cap
Article description
The new Anadol Quad LNB with only 0.1dB noise figure, gold-plated connector, low power consumption, excellent signal quality and UV-resistant weatherproof housing is characterized by Top Quality.
This LNB is extremely cold and heat resistant and allows the signal reception of a satellite and the distribution to 4 terminals (Receiver) with one Tuner.
Features:
- Quad LNB - 4 participant
- Gold-Plated Connections
- Low Energy Consumption
- Suitable for 4K / UHD, FULL HD and SD Reception
- Excellent Workmanship
- Low Noise Figure
- Low Phase Noise
- High Cross Polarization Isolation
- High Frequency Stability
- With Weatherproof Housing
- With Gold Plated F-Connectors for Free
- Waterproof
Technical Info:
- Input Frequency Range: 10.7 ~ 11.7 GHz / 11.7 ~ 12.75 GHz
- Output Frequency Range: 950 ~ 1950 MHz / 1100 ~ 2150 MHz
- Outputs: 4 (4x direct receiver connection)
- LO Frequency: 9.75 / 10.6 GHz
- Noise Figure 0.1dB (typical)
- Operating Temperature -30 °C ~ 60 °C
Delivery:
1x Anadol Gold Line Quad LNB
8x F-Plug Gold Plated 7mm
1x Anadol LNB Cap Weatherproof Cap
This LNB is extremely cold and heat resistant and allows the signal reception of a satellite and the distribution to 4 terminals (Receiver) with one Tuner.
Features:
- Quad LNB - 4 participant
- Gold-Plated Connections
- Low Energy Consumption
- Suitable for 4K / UHD, FULL HD and SD Reception
- Excellent Workmanship
- Low Noise Figure
- Low Phase Noise
- High Cross Polarization Isolation
- High Frequency Stability
- With Weatherproof Housing
- With Gold Plated F-Connectors for Free
- Waterproof
Technical Info:
- Input Frequency Range: 10.7 ~ 11.7 GHz / 11.7 ~ 12.75 GHz
- Output Frequency Range: 950 ~ 1950 MHz / 1100 ~ 2150 MHz
- Outputs: 4 (4x direct receiver connection)
- LO Frequency: 9.75 / 10.6 GHz
- Noise Figure 0.1dB (typical)
- Operating Temperature -30 °C ~ 60 °C
Delivery:
1x Anadol Gold Line Quad LNB
8x F-Plug Gold Plated 7mm
1x Anadol LNB Cap Weatherproof Cap
EAN: 4251698700802
Product safety
| Product Number | : LNBQUA074W |
|---|---|
| WEEE Number | : 55489567 |
| EAN Code | : 4251698700802 |
Responsible Person for the EU
| Name | : EFE-MULTIMEDIA GmbH |
|---|---|
| Street | : Max-Planck-Str. 6b |
| Location | : 63322 Rödermark |
| Country | : DE |
| Phone | : +4960743709819 |
| : [email protected] | |
| Website | : https://anadol-media.de/ |
