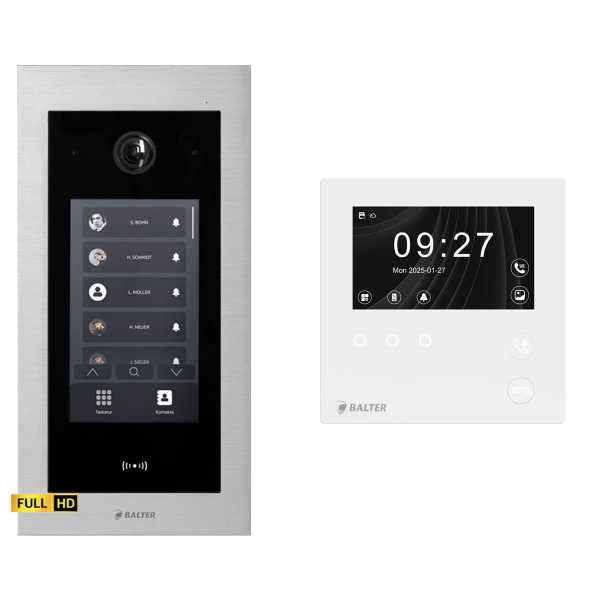

BALTER EVO HD Touch Video Door Intercom 4.3 Inch Mini HD Monitor Set

Discover the BALTER EVO HD Touch 7 set, which consists of a state-of-the-art door station and a stylish 4.3" mini HD monitor, offering the highest level of security and convenience for your home. The robust door station is designed for up to 1,000 residential units and, thanks to its 175° ultra-wide-angle camera, captures everything in view in brilliant Full HD resolution. Intuitive operation is achieved directly via the 7-inch IPS TFT full-touch display, while integrated access control functions such as a virtual code module and an RFID reader offer flexible access options. The station also supports electronic door openers and automation functions and allows local storage of recordings via a microSD slot.

The included 4.3-inch monitor with touch keys also delivers a sharp image quality of up to 1080p Full HD*. Depending on the monitor option selected, you also benefit from integrated Wi-Fi functionality and convenient app control**. This allows you to see and communicate with visitors from anywhere. Speak and even open the door via smartphone or a practical QR code.** The ability to connect a floor bell, support for door chimes, and the integrated intercom and hands-free function round out the versatile range of functions of this advanced 2-wire BUS system.

*Depending on the Monitor Variant
**Only available with the Wi-Fi Monitor Option

Features
- Door Station for up to 1,000 Families
- 175° ultra-wide-angle Camera with Full HD Resolution
- 7-inch IPS TFT Full-Touch Display for Direct on-screen Operation
- Access Control: Virtual Code Module & RFID Reader
- Electronic Door Opener and Automatic Door
- MicroSD Slot up to 128GB (Door Station)
- 4.3-inch Sensor Key Monitor
- Up to 1080p Full HD Resolution*
- Wi-Fi Function and App Control**
- Open Door with QR Code on your Smartphone**
- MicroSD Card Slot up to 32GB (Monitor)
- Connectable Floor Bell
- IP via 2-Wire BUS
- Supports Door Chime
- Intercom, Door Opener
- Hands-Free Function

*Up to 1920 x 1080 Pixels (Software Configuration Resolution).
**Varies Depending on the Variant.

See who's at the Door immediately: The Balter EVO HD Touch 7 door intercom system shows you every visitor who rings the bell. Using the door intercom monitor, you can see every visitor at the door live, so you always know who's waiting for you... and whether it's even worth going to the door. The full HD camera with 175° ultra-wide angle offers a razor-sharp image and night vision thanks to integrated infrared illumination. Installing the Balter EVO HD Touch 7 door station is relatively simple: It features 2-wire BUS wiring, which means you only have a single cable with two wires, which carries video and audio data at the end. and electricity.

A picture is worth a thousand words. This is precisely why the Balter EVO HD Touch 7 door intercom system shows you a live image of visitors, so you immediately know who is at the door. The 175-degree viewing angle of the wide-angle camera built into the outdoor station covers almost the entire horizontal plane. This allows you to see visitors both next to and below the camera. Even if there are several people at the door, you can still clearly see everyone.

RFID & Code Module
The sensor offers extremely effective access control through the intelligent combination of RFID technology and a virtual code module. Users can easily access the door from outside using an RFID chip, QR code, or a local private password, providing a convenient and secure solution for opening the door from the outside.

LEDs with Automatic Day/Night Switching
Thanks to an integrated day/night sensor, the Balter EVO HD door intercom system automatically detects the onset of darkness, activating the lighting. When a visitor rings the bell in the dark, night-vision LEDs are automatically switched on. activated so you can see exactly who's at your door, even at night. During the day, the lights are turned off to save energy and protect the environment.

Metal Surface, Elegant Design
EVO's HD door station is made of high-quality metal. This robust and lightweight material ensures that you and your visitors can enjoy EVO's elegant design for a long time to come. Thanks to its IP44 protection rating, the EVO HD withstands rain, dust, and splashes. The timeless and streamlined design blends in with both older homes and newer buildings.

Balter EVO HD MINI 4.3-Inch Monitor
The Balter EVO HD MINI 4.3-inch monitor is the ideal addition to your smart home. With its clear 4.3-inch color display, it enables effortless and intuitive communication with visitors at your door. It impresses with its sleek design, easy operation, and reliable 2-wire technology. Whether for monitoring your entrance area or for convenient conversations, this monitor offers you added security and convenience.

Balter EVO HD MINI WiFi 4.3-Inch Monitor
The Balter EVO HD MINI WiFi 4.3-inch monitor revolutionizes your door communication through seamless integration into your smart home. With its WiFi capability, it allows you to not only see visitors on the clear 4.3-inch display, but also communicate and open the door from anywhere via the app. It combines modern design with advanced technology, offering maximum flexibility and convenience. Thanks to its simple IP over 2-wire installation, it's the ideal choice for anyone looking to future-proof their home.

BALTER EVO 2 App: Your Mobile Control for the Door Intercom
The BALTER EVO 2 app extends the functionality of your door intercom to your smartphone, giving you maximum flexibility and control. No matter where you are, the app allows you to see and speak to visitors in real time, as well as conveniently open the door from your mobile device. You can also take pictures and videos at any time to capture important moments. Operating the door intercom system with multiple smartphones allows other family members to easily use the system. Thanks to the connection to a cloud server, all functions are reliably and securely available. As an additional practical option, the app also offers the ability to easily open the door using a QR code.

Expandable with Monitors, Intercom Function
The Balter EVO HD door intercom system offers the practical option of expanding the system with additional monitors. Up to four monitors (1 master + 3 extensions) can be integrated into the system, significantly increasing convenience. Thanks to this expansion, you can conveniently use all of the door intercom system's functions from different locations in the house and, for example, open the door without having to go into the hallway.

The monitors also have a useful intercom function. If you have multiple monitors installed (up to three additional devices in addition to the master), you can use this function to easily and directly communicate between any two monitors in the house. This further increases flexibility and convenience in everyday life.

Compatible with MicroSD Cards
For even more storage space for your visitor videos and photos, you can easily expand the internal memory with a standard MicroSD card up to 32 GB. This gives you enough space for hundreds of videos and up to 1,000 photos. If needed, you can export the data to your computer and save it permanently.

2-Wire Bus Technology
The built-in 2-wire bus technology ensures quick and easy installation. Just two wires are sufficient to simultaneously transmit video and audio data as well as power. This minimizes costs and effort when installing the door station. If the Balter EVO HD door station is replacing an existing, older door intercom system, you can usually even continue to use the existing wiring.

Technical Info (EVO HD Touch 7 Door Station)
- Bell buttons: up to 1,000 Families
- Color: Silver/Black
- Resolution: (600x1024) IPS TFT
- Mounting: Flush-mounted
- Access control: Virtual code module & RFID reader
- Material: Brushed aluminum panel
- Illumination: Infrared
- Day/Night switching: Automatic / Always on / Off
- Camera Module: 175° ultra-wide-angle camera, high-resolution
- Technology: 2-wire IP-BUS, no polarity
- Microphone and Speaker: Integrated
- Operating Temperature: -20°C to +55°C
- Power Consumption: 0.8W (standby) / 4.2W
- Hands-Free Function: Yes
- Protection Class: IP44
- Tamper Switch: Yes
- Power Supply: 28-32 V DC
- Screen Type: Capacitive Acrylic Glass Touchscreen
- Dimensions Flush-Mounted Box (W x H x D): 138 x 307 x 45 mm
- Front Panel Dimensions (W x H): 158 x 319 mm
- Weight (without flush-mounted box): 1240 g
- Weight (with flush-mounted box): 1980 g

Technical Info (EVO HD MINI 4.3-Inch Monitor)
- Color: White
- Material: Acrylic Glass
- Mounting Type: Surface-Mounted
- Connections: BUS, MicroSD Slot
- Hardware Resolution: 800 x 480 Pixels
- Software Configuration Resolution: up to 1920 x 1080 Pixels
- Screen Type: Color LCD
- Screen Size: 4.3 Inches
- On-screen Menu: Yes
- Intercom Function: Yes
- Maximum Expandability: 3 (1x Master + 3x Extension)
- Wiring: IP via 2-Wire BUS
- Microphone and Speaker: Integrated
- Features: View live images from the door station, photos, and videos of missed visitors, and record photos and videos. Supports floor bells and door chimes, intercom, RFID, and fingerprint compatibility. Multi-functional sensor buttons. Preset ringtones. User-friendly interface. Supports up to two door openers and one open button.
- WiFi Functionality: Yes/No*
- Maximum RF Power of the Band: 2.4 MHz 16dBm*
- Mobile App: Balter EVO2 iOS & Android App*
- Power Supply: 32V DC
- Power Consumption (without WiFi - Standby)*: 0.45W
- Power Consumption (without WiFi - Operation)*: 4.1W
- Power Consumption (with WiFi - Standby)*: 0.45W
- Power Consumption (with WiFi - Operation)*: 4.1W
- Dimensions: 132 x 132 x 21mm**
- Weight: 260g
- Operating Temperature: -10°C to 40°C

*Varies Depending on the Variant
**Without Wall Mounting

Technical Info (Main Power Distribution Unit)
- Mounting: DIN Rail Mounting
- Input Power: AC 100V-240V, 0.5A, 50Hz/60Hz
- Output Power: 32V DC (4A)
- Dimensions: 140 x 97.5 x 58.5mm

Delivery
1x BALTER EVO HD Touch 7 Door Station
1x Balter EVO HD Main Power Distribution Box (EVO-HD-C5001)
1x Flush-Mounted Box (For Door Station)
1x Allen Key, Screw and Dowel Set
1x User Manual
- Balter EVO HD MINI 4.3-Inch Compact Monitor*
- Balter EVO HD MINI WiFi 4.3-Inch Compact Monitor*

*VariesDepending on the Model

Item no.: BEVHDTMS001E

WEEE-Number 53076790
