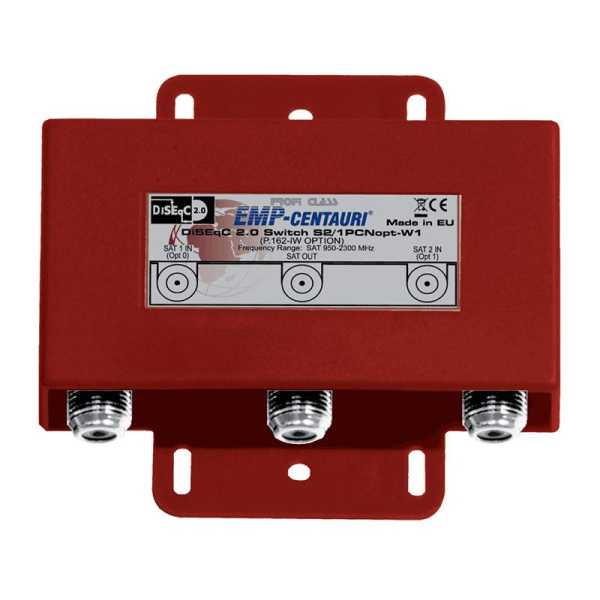

EMP Centauri Profi-Line S2/1PCNpos-W1 (P.162-IW) DiSEqC 2.0 Switch 2 Inputs/1 Outputs

2in/1out basic DiSEqC 2.0 switch for two satellite positions and 1 participant. It is designed for switching between two LNBs with the command "Position" (receiver setting A/B)

Technical Info:
- Inputs/Outputs: 2/1
- Control: DiSEqC 1.0 (2.0)
- DC Passage Max.: 400 mA
- Through Loss: 5dB max.
- Crosstalk Attenuation: 25 dB min.
- Frequency Range: 950-2300 MHz
- Dimensions: 8.2 x 7.7 x 2.3 cm
- Ambient Temperature: -30 ~ +70 °C
- Power Requirement: 30 mA (18V) + LNB from Satellites

Delivery:
1x EMP-Centauri DiSEqC switch S2/1PCNpos-W1 (P.162-IW position)
1x Installation/Operating Instructions

Item no.: MONDIS083

WEEE-Number 78987396
