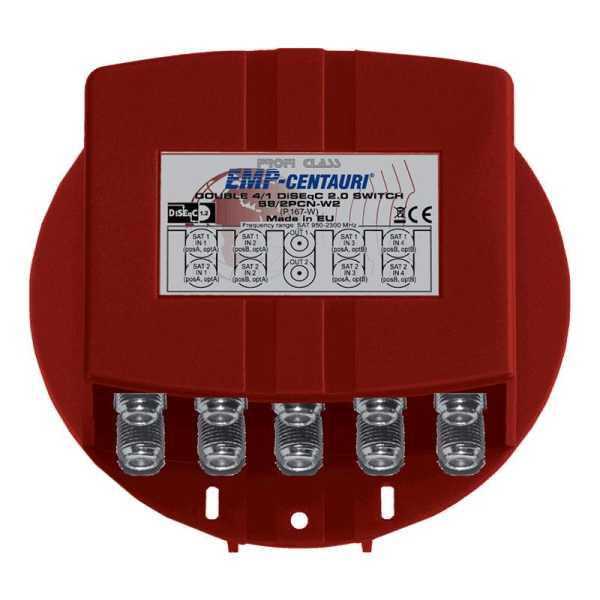

EMP Centauri Profi-Line S8/2PCN-W2 (P.167-W) DiSEqC 2.0 Switch 8 Inputs/2 Outputs

8in/2out double DiSEqC 2.0 switch for 4 satellite positions and 2 users (or 2 tuners). It is designed for switching between 3 or 4 LNBs, which are addressed in the receiver with the setting DiSEqC 1.0 A/B/C/D.

Technical Info:
- Inputs/outputs: 8/2
- Control: DiSEqC 1.0 (2.0)
- DC passage max .: 400 mA
- Through loss: 4dB max.
- Crosstalk attenuation: 25 dB min.
- Frequency range: 950-2300 MHz
- Dimensions: 11.2 x 11.2 x 4.9 cm
- Ambient temperature: -30 ~ +70 °C
- Power requirement: 35 mA (18V) + LNB from satellite receiver

Delivery:
1x EMP-Centauri DiSEqC Switch S8/2PCN-W2 (P.167W)
1x Installation/Operating Instructions
2x Cable Ties

Item no.: MONDIS080

WEEE-Number 78987396
