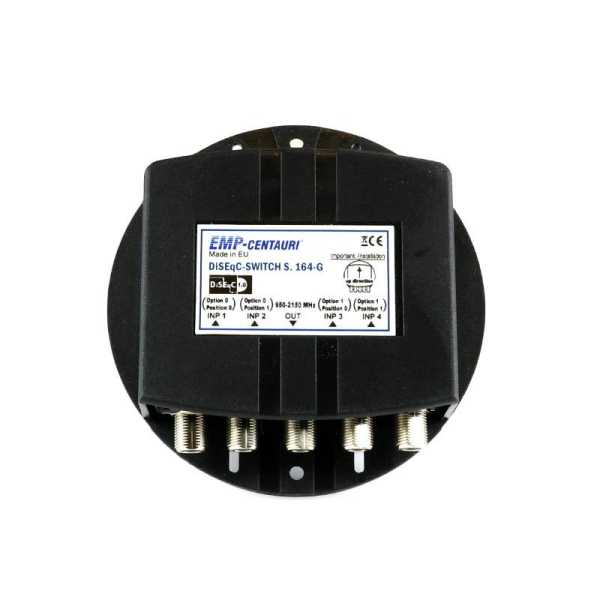

EMP Centauri Standard Class S.164-G DiSEqC 1.0 Switch Black 4 Input/1 Output
11457,MONDIS082
This product is currently not available.
S.164-G is a DiSEqC switch in a weatherproof housing, suitable for the distribution of satellite... more
"EMP Centauri Standard Class S.164-G DiSEqC 1.0 Switch Black 4 Input/1 Output"
S.164-G is a DiSEqC switch in a weatherproof housing, suitable for the distribution of satellite TV and radio signals from up to 4 LNBs to 1 user. The switch is controlled by the receiver with DiSEqC 1.0 commands. The switch is continuous for DC, 22 kHz, Tone Burst, and DiSEqC.
Technical Info:
- Inputs/Outputs: 4/1
- Control: DiSEqC 1.0
- DC Passage Max .: 400 mA
- Through Loss: 5dB i.d.
- Crosstalk Attenuation: 24 dB min.
- Frequency Range: 950-2150 MHz
- Dimensions: 11.3 x 11.3 x 2.6 cm
- Ambient Temperature: -25 ~ +60 °C
- Power Requirement: 40 mA (18V) from Satellite Receiver
Delivery:
1x EMP-Centauri DiSEqC Switch S.164-G
1x Installation/Operating Instructions
2x Cable Ties
Item no.: MONDIS082 WEEE-Number 78987396
Technical Info:
- Inputs/Outputs: 4/1
- Control: DiSEqC 1.0
- DC Passage Max .: 400 mA
- Through Loss: 5dB i.d.
- Crosstalk Attenuation: 24 dB min.
- Frequency Range: 950-2150 MHz
- Dimensions: 11.3 x 11.3 x 2.6 cm
- Ambient Temperature: -25 ~ +60 °C
- Power Requirement: 40 mA (18V) from Satellite Receiver
Delivery:
1x EMP-Centauri DiSEqC Switch S.164-G
1x Installation/Operating Instructions
2x Cable Ties
