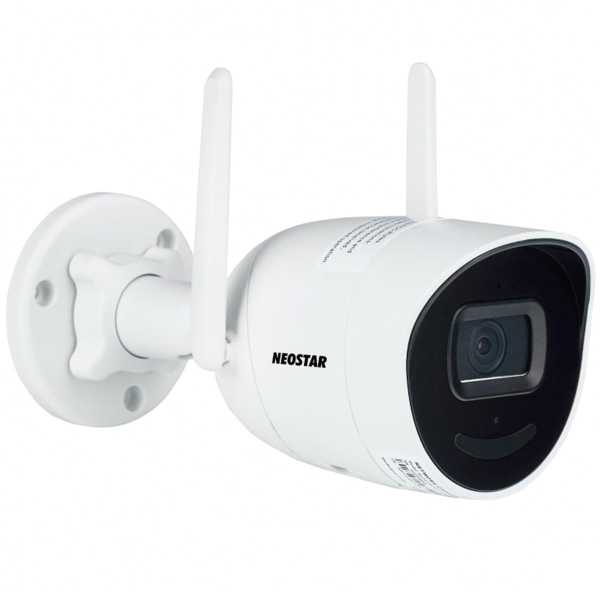

NEOSTAR NTI-4003IR-WIFI 4.0MP EXIR IP WiFi Outdoor Camera (2560x1440p, 2.8mm, Microphone & Speaker)

The NTI-4003IR-WIFI is a 4.0 megapixel IP outdoor camera equipped with WIFI signal transmission, EXIR LEDs, and a high-resolution 2.8mm megapixel lens. In order to withstand even the most adverse environmental conditions, the IP outdoor camera was housed in weatherproof housing and is therefore ideally suited for outdoor installation.

Features
- 2.8mm wide angle lens
- 1/2.7" sensor, ultra low light
- Wide Dynamic Range 120dB
- IP WiFi outdoor camera with 4.0MP resolution
- Frame rate at 4.0MP resolution: 2560 x 1440p @ 25Bps
- Frame rate at 2.0MP resolution: 1920 x 1080p @ 25Bps
- Night vision range up to 30 meters+ intelligent additional light
- Support of video formats H265+, H.265, H.264 and MJPEG

Technical Info
- Camera type: WIFI outdoor camera
- Image sensor: 1/2.7 "CMOS
- Resolution: 4.0 megapixels
- Aspect ratio: 16:10
- Active pixels: 2560 (H) x 1440 (V)
- Frame rate: 25 frames/sec. at 2560 x 1440p
- Resolution scaling: 2560 x 1440p (MainStream) to 320 x 240p (SubStream)
- Image compression method: H.265+/H.265/H.264+/H.264
- Minimum lighting: (color) 0.009Lux (F1.6, AGC on), SW: 0Lux (IR LEDs on)
- Infrared LEDs: 850nm, EXIR LEDs
- IR-LED technology: EXIR 2.0 + smart additional light
- Lighting range: 30 meters
- Dynamic range: 60dB
- Dynamic range (WDR on): 120dB
- Lens: 2.8mm
- Lens type: day/night (IR)
- Viewing angle: 97° (horizontal), 52° (vertical)
- On-screen menu: Via web interface, CMS, and network video recorder
- Camera title: text and numbers, time, date
- Day/Night: Auto (ICR)/Day/Night/Disabled
- Backlight compensation: BLC
- Highlight compensation: HLC
- Wide Dynamic Range: WDR 120dB
- Noise reduction: On/Off (level 1 to 100)
- Residual light amplification: Supported
- White balance: WB / AWB1/incandescent lamp/warm light/natural etc.
- Gain control: AGC
- Motion detection: on/off/schedule/set of rules when triggered
- Electronic shutter speed: 1/3s to 1/100,000s
- Privacy masking: zones configurable
- Further settings: saturation, brightness, contrast, and sharpness
- Region of interest: On/Off for mainstream/sub stream, max. 2 zones
- Tamper alarm: Supported
- Video content analysis: virtual lines/intrusion detection
- Basic event detection: motion detection, video manipulation, network disconnected, IP address conflict, illegal login, HDD error, HDD full
- Email delivery: To up to 3 recipient addresses
- Set of rules when triggered: Email, FTP upload, notify control center, trigger channel
- Snapshot: Time-controlled/Event-controlled
- Video Streaming: Double Stream (MainStream and SubStream)
- Streaming Method: Unicast/Multicast
- Streaming protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL TLS
- Peer-to-Peer: Supported
- User Access: Up to 5 user accesses simultaneously
- WebViewer: Plug-in required for live view: IE8 +, Chrome41.0-44, Firefox30.0-51, Safari8.0-11; Plug-in-free live view: Chrome 45.0+, Firefox 52.0+
- Security: one-button reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter, password protection, HTTPS encryption, 802.1X authentication
- Other camera functions: pre-alarm + post-alarm, mirroring, rotating
- Languages: German, English, Russian, Turkish, etc.
- WIFI standard: IEEE802.11b, 802.11g, 802.11n
- WIFI transmission bandwidth: 2.4 GHz ~ 2.4835 GHz
- WIFI security: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
- WIFI transmission range: max.120m (depending on the environment)
- Housing color: white
- Camera alignment: 3-axis (wall and ceiling mounting)
- Adjustment angle: Pan: 0° to 360°, tilt: 0° to 90°, rotate 0° to 360°
- Memory card: up to 256GB microSD card
- Data transfer to NAS: Up to 8 addresses (NFS, SMB / CIFS)
- Interface standard: ONVIF, ISAPI, SDK
- Microphone: built-in microphone
- Loudspeaker: built-in loudspeaker
- Audio compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)
- Alarm linking: upload to NAS/memory card, notification of the surveillance center, triggering of recording, triggering of detection, audible warning
- Network: RJ-45 (10/100M Ethernet interface)
- Protection class: IP66
- Operating temperature/humidity: -30° C to + 60° C/0% to 95% (non-condensing)
- Power supply: 12V DC
- Power consumption: 7.2 watts max
- Dimensions: 175.6 x 73.0 x 89.1 mm
- Weight: 450g

Delivery
1x NEOSTAR 4.0MP EXIR IP WiFi outdoor camera, 2.8mm, 2560x1440p, night vision 30m, WDR 120dB, H.265+/H.264+, dual antenna WiFi, microphone+speaker, 12V DC, IP66 - NTI-4003IR-WIFI
1x Mounting Template
1x Screw Set
2x Antennas
1x Quick Start Guide

Item no.: NETCAM074
