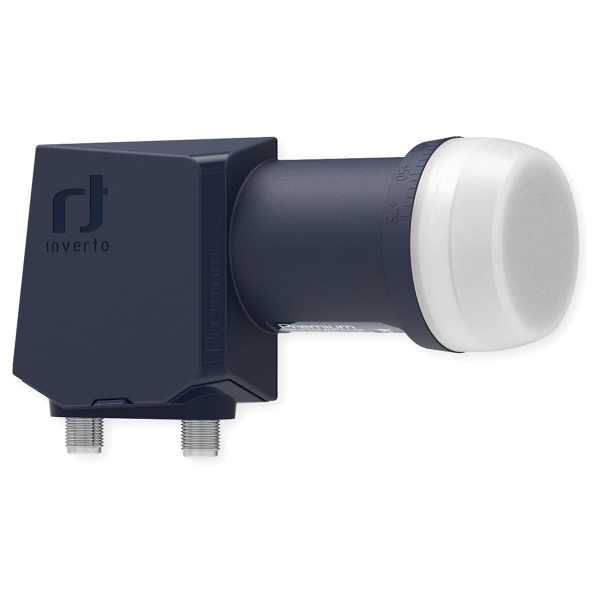

Inverto Premium IDLP-TWL413-PREMU-OPN Twin LNB (40mm, PLL, DVB-S2X, ULN+, 4K/8K UHD)

This specially designed LNB meets the requirements of the global DTH market and offers a high-performance, 4G/5G/LTE-protected solution. Optimized by the latest chipset technology and a modern waveguide design, this LNB enables satellite TV and radio reception from a single satellite and distribution to two set-top boxes or a PVR with two tuners. It offers support for HD and UHD transmissions and its high frequency stability and low power consumption make it an outstanding device for demanding users.

Features
- Low-Phase Noise
- DVB-S2 (HD and UHD) Compatible
- Low Power Consumption
- High Cross-polarization Isolation
- High-frequency Stability

Technical Info
- Input frequency range low band: 10.7 GHz ~ 11.7 GHz
- Output frequency range low band: 950 MHz ~ 1950 MHz
- Oscillator frequency (LO) low band: 9.75 GHz
- Input frequency range high band: 11.7 GHz ~ 12.75 GHz
- Output frequency range high band: 1100 MHz ~ 2150 MHz
- Oscillator frequency (LO) high band: 10.6 GHz
- Noise figure: 0.2 dB typ. (0.7 dB max.)
- LO temperature drift: ±2.0 MHz max.
- LO initial accuracy: ±500 kHz max.
- LO phase noise at 1 kHz: -70 dBc/Hz
- LO phase noise at 10 kHz: -80 dBc/Hz
- LO phase noise at 100 kHz: -90 dBc/Hz
- LO phase noise at 1 MHz: -100 dBc/Hz
- Gain: 57 dB ~ 67 dB
- Gain ripple (over 26 MHz bandwidth): 1 dB max. (peak-to-peak)
- Gain variation (in full band): 4 dB max. (peak-to-peak)
- Image rejection: 40 dB min.
- 3rd order intermodulation products - ICP3: +10 dBm min.
- 1 dB compression point (at output): 0 dBm min.
- Cross polarization isolation: 22 dB min.
- Control signal Ca (V): 10.0 V ~ 14.0 V
- Control signal Cb (H): 16.0 V ~ 20.0 V
- Control signal Cc (band switching): 22 kHz ±4 kHz
- Output VSWR: 2.0:1 max.
- In-band interference: -65 dBm max.
- Current consumption: 150 mA max. (10 VDC ~ 20 VDC)
- Operating temperature: -30 °C ~ +60 °C
- Output impedance: 75 O (F-type)
- Output connection: F-type (female)

Dimensions & Weight
- Dimensions: 72 x 117 x 48 mm
- Weight: 128 g

Delivery
1x Inverto Premium IDLP-TWL413-PREMU-OPN Twin LNB, black

Item no.: LNBTWI050

WEEE-Number 88752832
