Octagon satellite antenna 80cm steel anthracite + single LNB + 10m coax cable

Our unique click system eliminates extra nuts and bolts, facilitating installation and reducing assembly time.
The simple click assembly, the low weight, the double mast clamps and the very careful elevation scale make this satellite antenna the first choice for both beginners and professionals.
Thanks to the excellent processing quality, a long service life of the satellite antennas is guaranteed.

Furnishing
Mirror powder coated on both sides
Quick mounting bracket, infinitely adjustable
Quick LNB arm made of aluminum and cable guide
incl. 2 fastening clamps

refector (mirror)
TypeOffset
Offset angle 26°
Receive frequency 10.7 - 12.75 GHz
Gain (Ku-band) 38 dB
Material zinc phosphate steel
Top coat Polyester powder coating
Color anthracite (RAL 7016)
Diameter 80cm
LNB bracket 40mm
F/D 0.6
LNB arm aluminium
Operating temperature -40° - + 60°
Wind load 90 km/h
Critical wind load 150 km/h

back part
Material Galvanized steel
Top coat Polyester powder coating
Alignment azimuth 0° - 360°
Inclination angle (elevation) 0° - 90°
Mast diameter 35 - 60mm

Mass weight
Weight 4.1kg

Properties LNB:
- Participants: 1
- Noise figure: 0.1 dB
- Polarization: linear H/V
- Input frequency: from 10.7-12.75 GHz
- Feed diameter: 40mm
- Waterproof: 100% tested

Properties cable:
- Length: 10 meters
- Color white
- Outer jacket: 7 mm
- Shielding: 100dB
- Inner conductor: 1.02mm
- analog and digital compatible
- with meter printing

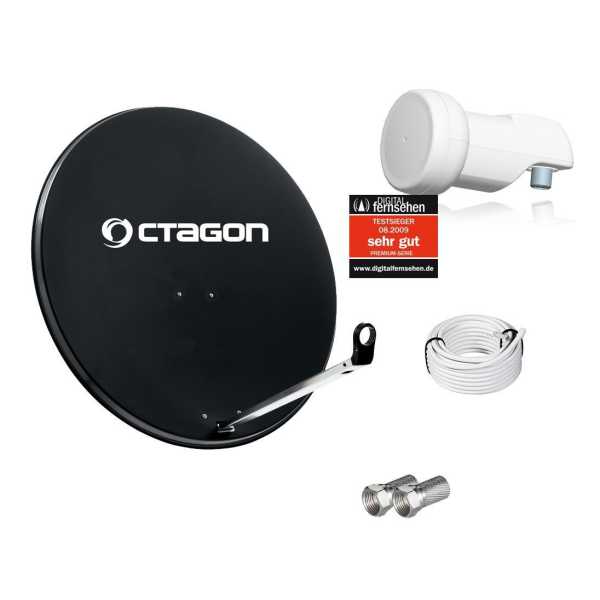

Scope of delivery:
1x Octagon 80cm satellite antenna anthracite with LNB arm and mast attachment
including assembly instructions
1x Opticum LSP-02G Premium Single LNB
1x 10m coaxial cable 100dB incl. 2 F connectors

Item no.: XXX830

WEEE-Number 69966297
