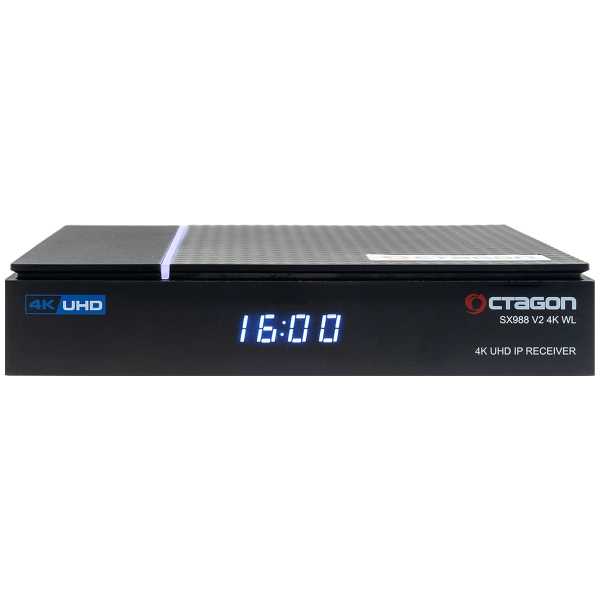

Octagon SX988 V2 4K WL UHD Linux IP Receiver (Dolby Digital+, Dual WiFi, LAN)

The Octagon SX988 V2 4K WL is more than a 4K UHD IP receiver. It is a versatile entertainment center that combines the latest technology with the flexibility of the Linux (Define OS) operating system. This receiver is designed to delight even the most demanding users and offers an unparalleled viewing experience.

Features
- 4K UHD (3840 x 2160p) resolution
- Linux operating system
- 1GB DDR3 RAM & 8GB Flash
- Dual-band WiFi 5

Performance & Flexibility
Equipped with a powerful 15,000 DMIPS quad-core processor, the SX988 V2 4K WL offers impressive performance. Thanks to the support of images, plugins, add-ons and skins, you can customize and expand the receiver according to your needs.

Unlimited Entertainment
By connecting an external hard drive, a USB stick or integrating it into your home network, the SX988 v2 4K WL becomes a fully-fledged multimedia player. Enjoy your holiday photos, favorite music or videos in impressive quality on your TV.

Technical Info
- Product type: IP Receiver
- Image: UHD 4K
- Image resolution: 3840 x 2160p
- Video codec: HEVC/H.264, HEVC/H.265, MPEG-2, MPEG-4, VP9
- Audio codec: AAC, AAC Plus, MP3, Dolby Digital, Dolby Digital Plus, DTS, TureHD
- Operating system: Linux (Define OS)
- SoC (chip): 6320V100
- CPU (processor): 1,600 MHz ARM Cortex-A55 Quad-Core
- GPU (graphics): ARM Mali-450
- RAM: 1GB DDR3
- Flash memory (flash): 8GB
- DMIPS: 15,000
- PVR: No
- HD+ support: No
- HDMI CEC support
- Remote control: IR remote control
- OSD User interface can be customized in many ways (skin support)
- 4-digit 7-segment display
- Internet radio
- WebInterface Touch & FTP
- Extended EPG (Electronic Program Guide)
- Media libraries of public broadcasters
- DLNA player & media player with recording & time shift function
- Unlimited creation of favorites lists
- Multiroom client & Sat to IP client support

Connections
2x USB 2.0
1x HDMI 2.0a
1x AV Connection
1x DC Connection
1x IR Connection
1x S/PDIF (Optical)
1x LAN (10/100Mbit/s)
1x Recovery (Reset) Button Service & Maintenance

Connectivity
- WLAN: 2.4/5.0 GHz Dual-Band WiFi
- WLAN (Standards): WiFi 5
- WLAN (Speed): 1200 Mbit/s

Device
- Power Supply: DC 12V 1A
- Power Consumption (standby): 0.5W
- Power Consumption (operation): Max 20W
- Storage Temperature: 0 40°C
- Humidity: <95%
- Dimensions: 148 x 103 x 30 mm
- Product Weight: 250 g
- Package Weight: 670 g
- Color: Black
- Country of Origin: China

Delivery
1x Octagon SX988 V2 4K WL 4K UHD Linux IP Receiver
1x Octagon SX RCU 07 IR Remote Control, Black
1x External Infrared (IR) Receiver
1x HDMI Cable
1x Power Supply 12V1A
2x Batteries (AAA)
1x User Manual

Item no.: RECOCT144

WEEE-Number 69966297
