Telescopic RHS5050 Frame Bracket Rafter for Roof Mounting

Under-roof rafter bracket 50 cm side length for roof mounting of the satellite system.
( For mounting from the attic.)

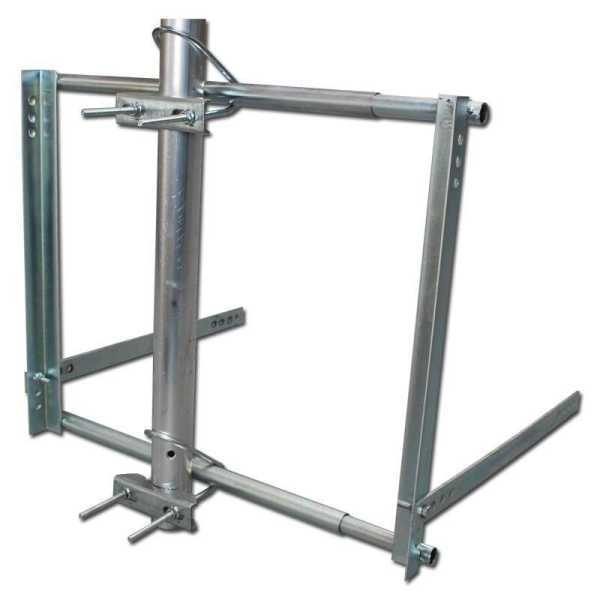

Bracket for attaching your antenna mast between the roof beams. The bracket is made of hot-dip galvanized steel to ensure long service life. The bracket is screwed to the inside of two adjacent roof beams. Your antenna mast is then attached to this bracket. Two clamps are used to attach the mast.

Poles of 40-60mm diameter can be used.
Attention: The delivery takes place without a mast.

Technical Info
Length, width, and thickness of side braces: 500 x 30 x 5mm
Angle Iron: 30mm x 30mm
Length, angle iron thickness: 500 x 3.15mm
Length of inner telescopic tube: 500 mm
Diameter, thickness: 20 x 1.5 mm
Length of outer telescopic tube: 500 mm
Diameter, thickness: 25 x 1.5mm
Mast clamp, thickness: 100 x 2.5mm
Mast diameter: 40-60mm
Rafter spacing: 52-92cm

Item no.: MONWAN-008
